Medium Blood Bank Refrigerator BBR 300

$8,944.00 ex. tax

  • +4 °C
  • Upright Model – 352 L
  • Single Compressor Technology
  • True Dual Technology
  • Medical Device Class IIA
  • Double Pane Glass Door
  • Forced Air Cooling

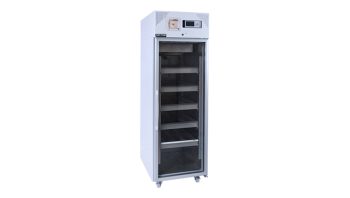

BBR 300 MDD Blood Bank Refrigerator front Facing
Medium Blood Bank Refrigerator BBR 300 $8,944.00 ex. tax

The ARCTIKO BBR range is a perfect combination of unique temperature uniformity and reliable technology. Experience the blood bank refrigerator models with advanced controller, integrated non-manipulative data logger with USB read out and chart recorder as standard.

  • Upright
  • Capacity (L) 352 L.
  • Range +4 °C
Item Code DAI 1115
Temperature Range (°C) +4
Max. Ambient Temperature (°C) 32
Capacity (L) 352
Exterior Dimensions WxDxH (mm) 520 X 690 X 1997
Interior Dimensions WxDxH (mm) 400 x 585 x 1505
Weight (KG) 133
Insulation (mm) 60
Cooling Technology Forced Air
Controller Model / Probe Type Arctiko G 214® / Pt 1000
Power Supply (V) 230
Frequency (Hz) 50/60
Power Consumption (KWHH/24H) 5,2
AMP (A) 2,0
Power (Watt) 382
Horse Power (HP) 1/8


Alarm Display As Text – Not Codes Yes
Visual / Acoustic Alarm Yes / Yes
Power Failure Alarm Yes
Adjustable High/Low Temperature Alarm Yes / Yes
Open Door Alarm Yes
Probe Failure Alarm Yes
Low Battery Alarm Yes
Compressor Failure Alarm No
Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module) Yes
Electronic Data Logger Yes
RS 485 Port Yes
USB Port For Software Update & Data Download Yes
Temperature Chart Recorder Yes
Display Type 4,3″ With Touch Buttons
Number Of Optional Reference Probes 2
Password Protection for Turning On/Off Yes
Temperature Graph on Display Yes
Automatic Defrost Yes
Antifreeze Function No
Vacuum Release Port No
Access Port For External Probe Etc. (Int. Diameter mm) 12
Light Yes
Lock With Key Yes
Castors (Total Pcs) / Castors With Brake (Pcs) 4 / 2
Fixed Feet (Pcs) / Levelling Feet (Pcs) No
Sub Lids Or Inner Doors (Pcs) No
Reversible Doors (Pcs) Yes
Fixed Shelves (Pcs) / Adjustable Shelves (Pcs) No
Max. No. Of Shelves (Pcs) / Recommended Max. No. Of Shelves (Pcs) No
Max Load Per Shelf (Kg) No
Adjustable Drawers (Pcs) 5
Max. Load Per Adjustable Drawer (Kg) 30
Max. No. Of Blood Bags – By Standard No. Of Adj. Drawers (Pcs) 150
Basket (Pcs) No
Max. No. Of Baskets (Pcs) No
Max. Load Per Basket (Kg) No
Total Capacity Of 50 Mm Boxes 9×9 Dividers (Pcs) No
Total Capacity Of 75 Mm Boxes 9×9 Dividers (Pcs) No
Total Capacity Of 96 Mm Boxes 9×9 Dividers (Pcs) No
Number Of Compressors 1
Refrigerant R290
Interior Cabinet Material Stainless Steel
Exterior Cabinet Material Painted Steel
Colour (Exterior Cabinet) White
Foam Agent Polyurethane
VIP Vacuum Insulated Panels No


Shipping Weight (KG) 202
Shipping Dimensions WxDxH (cm) 74 X 83 X 220
Shipping Volume (M³) 1,35
