TRIX-16 Temperature Logger

  • -40°C to +85°C
  • Stores up to 16,000 readings
  • Alarm indicator for quick alerts
  • Battery life of up to 3 years
  • Fast response time for accurate monitoring

Arctiko, or our local stockist will provide you with a quote within two working days.

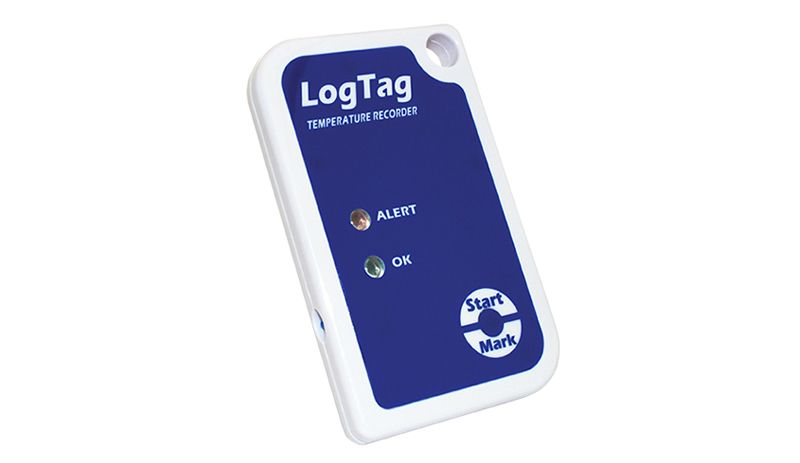

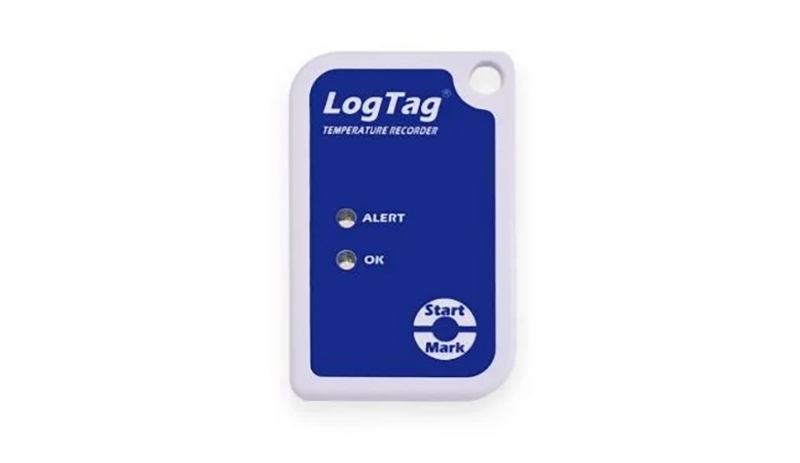

This LogTag data logger suits the monitoring and recording of temperatures in refrigerators and freezers with accuracy and reliability. With a wide measurement range of -40°C to +85°C, it is well suited for verifying cold storage conditions, while the built-in real-time clock timestamps every reading for precise tracking.

Key Advantages of the LogTag TRIX-16:

  • Monitoring range: -40°C to +85°C

  • Accuracy: ±0.5°C

  • Long battery life: 2–3 years (at 25-minute intervals)

  • Configurable alarms with LED indicators

  • Cost-effective, high-performing design

  • Durable polycarbonate housing

  • Eliminates manual temperature checks

  • Helps safeguard stored goods in cold environments

The TRIX-16 is an excellent option for dependable oversight of cold storage, helping ensure that fridge and freezer contents remain within safe temperature limits.

Temperature Measurement Range -40°C to +85°C (-40°F to +185°F)
Storage Temperature Range -30°C to +55°C (-22°F to +131°F)
Rated Temperature Reading Resolution Less than 0.1°C for -40°C to +40°C
Less than 0.2°C for +40°C to +80°C
Less than 0.4°C for +80°C to +85°C
LogTag Analyzer® currently displays to one decimal place of °C or °F.
The native resolution is what is stored in the LogTag®
Sensor Reaction Time Typically less than 5 minutes (T90) in moving air (1m/s)
Recording Capacity 16,159 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging
Sampling Interval Configurable from 30 seconds to several hours
Logging Start Options Push button start or specific date & time. Optional start delay of up to 18 hours
Recording Indication Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator
Download Time Typically less than 10 seconds for full memory (16,159 readings), depending on computer or readout device used
Environmental IP65 (roughly equivalent to NEMA 4)
Power Source CR2450 3V LiMnO2 Battery (Fixed)
Battery Life 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly)
Real Time Clock Built-in real time clock
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day)
Rated temperature coefficient is -0.034 ±0.006ppm/°C
(Typically ±0.00294 seconds/day/°C)
Size 86mm (H) x 54.5mm (W) x 8.6mm (D)
Weight 33g
Case Material Polycarbonate
