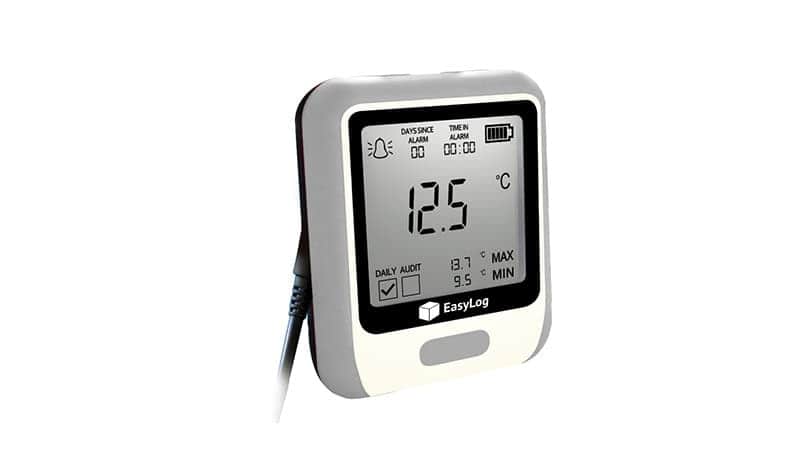

EL-USB-VACX Vaccine Temperature Logger

  • -40°C to +60°C
  • Stores 1,000,000+ readings
  • Configurable alarms
  • Hot-swappable probe
  • High-accuracy smart probe

Arctiko, or our local stockist will provide you with a quote within two working days.

Questions? Request a Call Back

Protect vaccine integrity with the EL-USB-VACX, designed for accurate fridge and freezer monitoring. This reliable logger ensures vaccines stay within safe ranges during storage and transport.

Key Features:

  • -40°C to +60°C
  • Stores 1,000,000+ readings

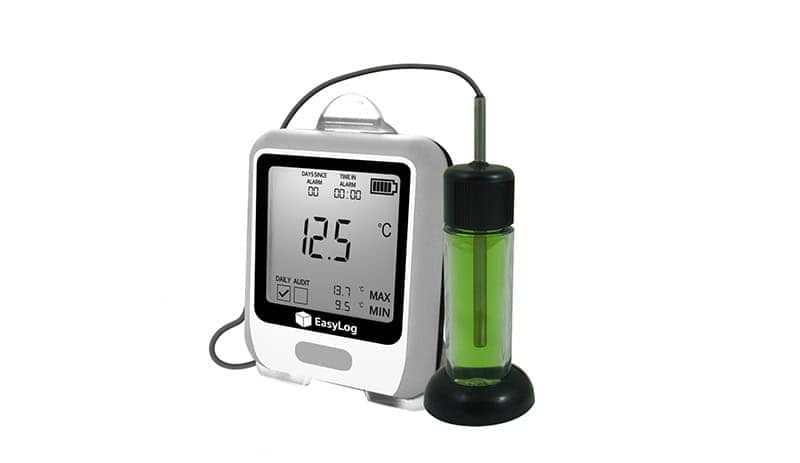

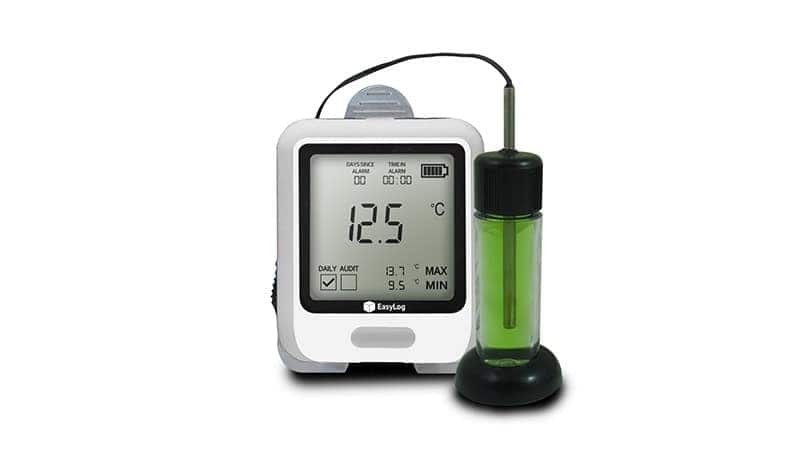

  • Glycol probe simulates vaccine response to avoid false alarms
  • High-accuracy smart probe for precise data
  • Hot-swappable calibration for minimal downtime
  • Onboard software for quick setup & graphing

Essential for healthcare, pharmacies, and labs, the EL-USB-VACX safeguards vaccines from temperature excursions and supports patient safety.

Temperature Measurement Range -40 to +60°C / -40 to +140°F
Typical Accuracy ±0.1°C (-10 to +60°C) / ±0.2°F (+14 to +140°F)
Maximum Accuracy ±0.5°C (-40 to +60°C) / ±0.9°F (-40 to +140°F)
Measurement Resolution 0.01°C (0.02°F)
Display Resolution 0.01
Logging Period (User Selectable) 1 minute to 24 hours
Smart Modes Immediate, push to start, delayed start, temperature triggered
Internal Memory Capacity Over 1,000,000 readings
Sounder Integrated alarm sounder
Operating Environment (Logger) -20 to +60°C, 5 to 85%RH, 75 to 106kPa
Transportation Environment -20 to +60°C, 5 to 85%RH, 75 to 106kPa
Ingress Protection Logger: IP4X, Probe: IP67
Pollution Degree 2 (intended use environment)
Battery Life 6 months
Internal Battery 3.7V, 1750mAh, 6.475Wh Li-ion
USB Supply Voltage 4.5 to 5.5VDC, 500mA
Dimensions (Logger) 80 × 68 × 23mm (3.15 × 2.68 × 0.91″)
Net Weight 134g
Recommended Wall Fixing Screws 4 × 20mm, countersunk head, cross recessed, stainless steel
SKU: EL-USB-VACX Category: Tag:
